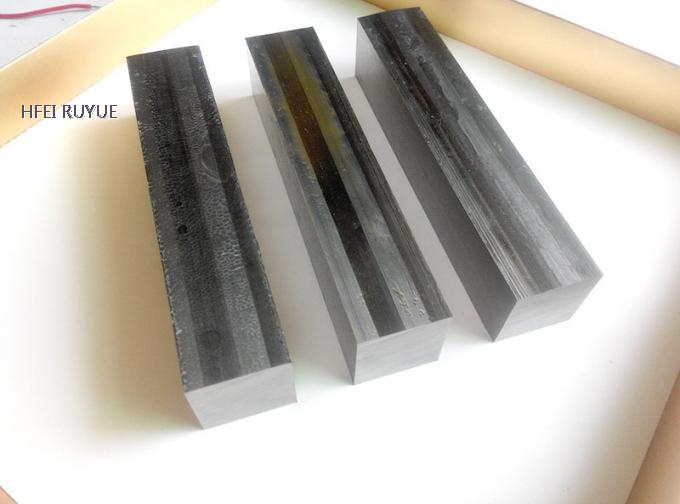

Amorphous stack core ( wound core)
Product name : Amorphous stack core ( wound core)
Products Category: > Amorphous /Nanocrystalline alloy ribbon > Amorphpus alloy ribbon

APPLICATION
Reactor cores for PV inverter
Filter reactor of high-frequency super switching power supply
CHARACTERISTICS
High saturate induction -- Reducing Core Volume
Free Combination -- Easy for coil assembling and high power design
Dispersed gads -- Good for anti-DC-bias--saturation, anti-temperature-rising
Low core loss -- increase efficiency (1/5~1/10 no-load loss compared to silicon steel)
Good stability -- Stable working from -50℃ to 150℃
