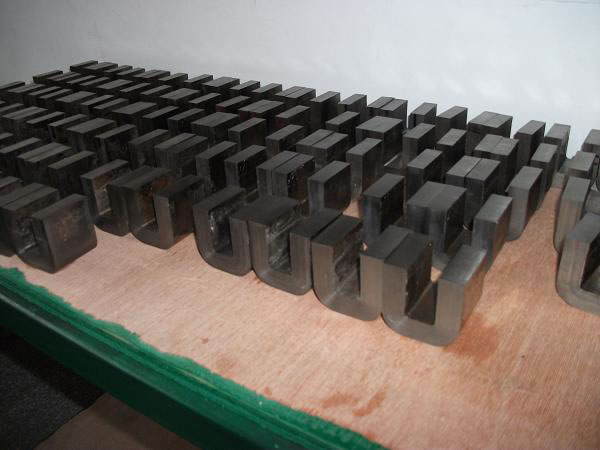

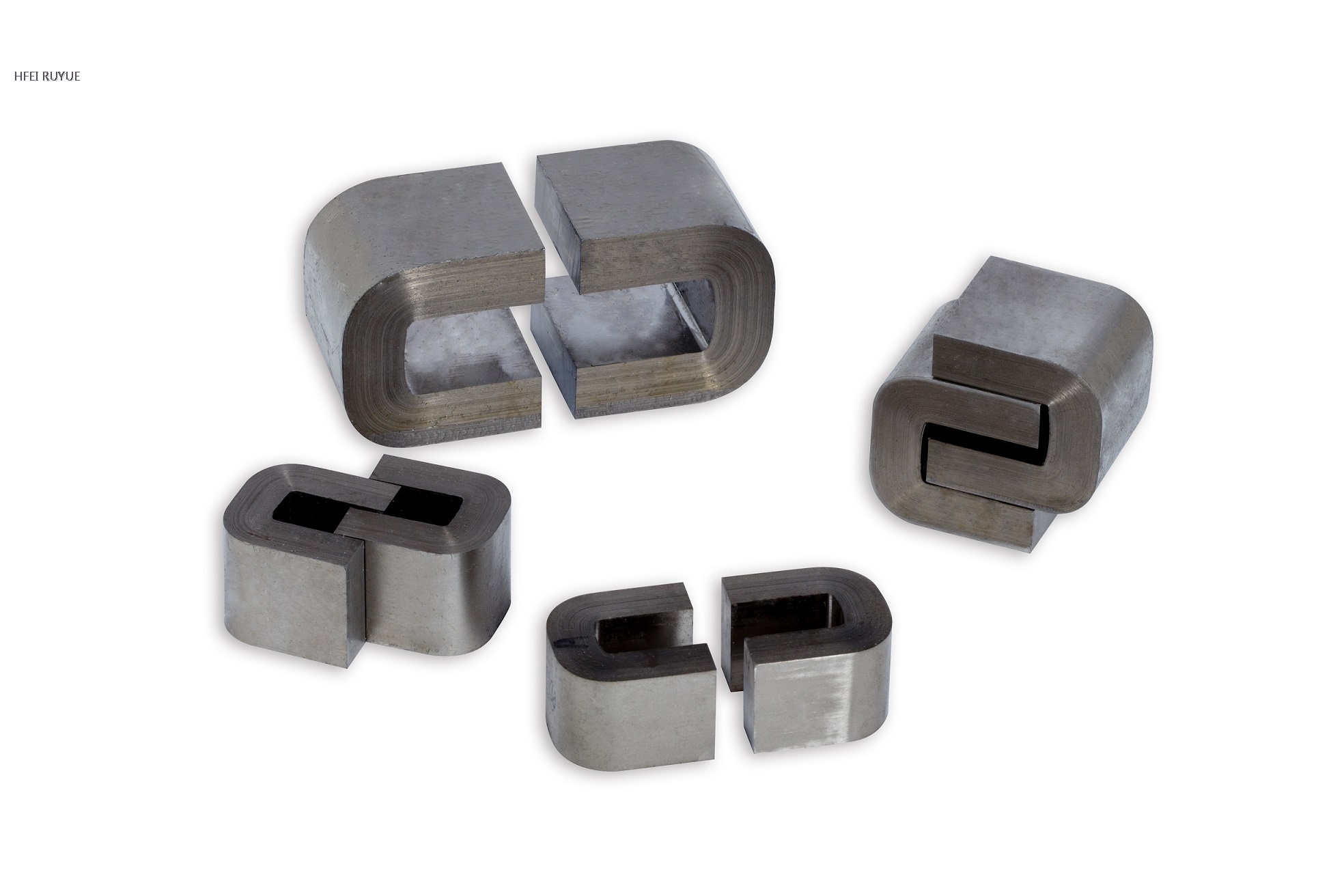

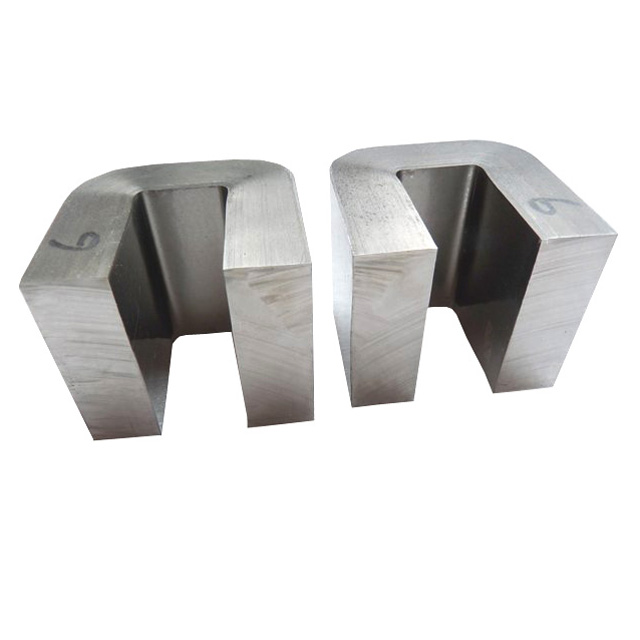

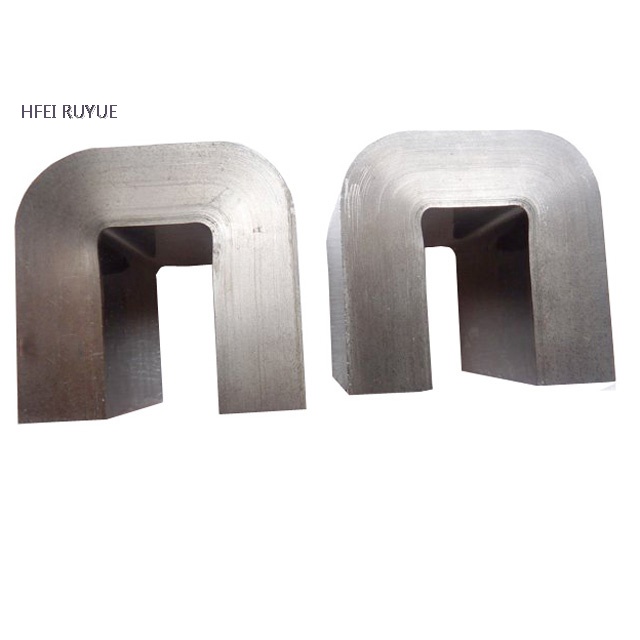

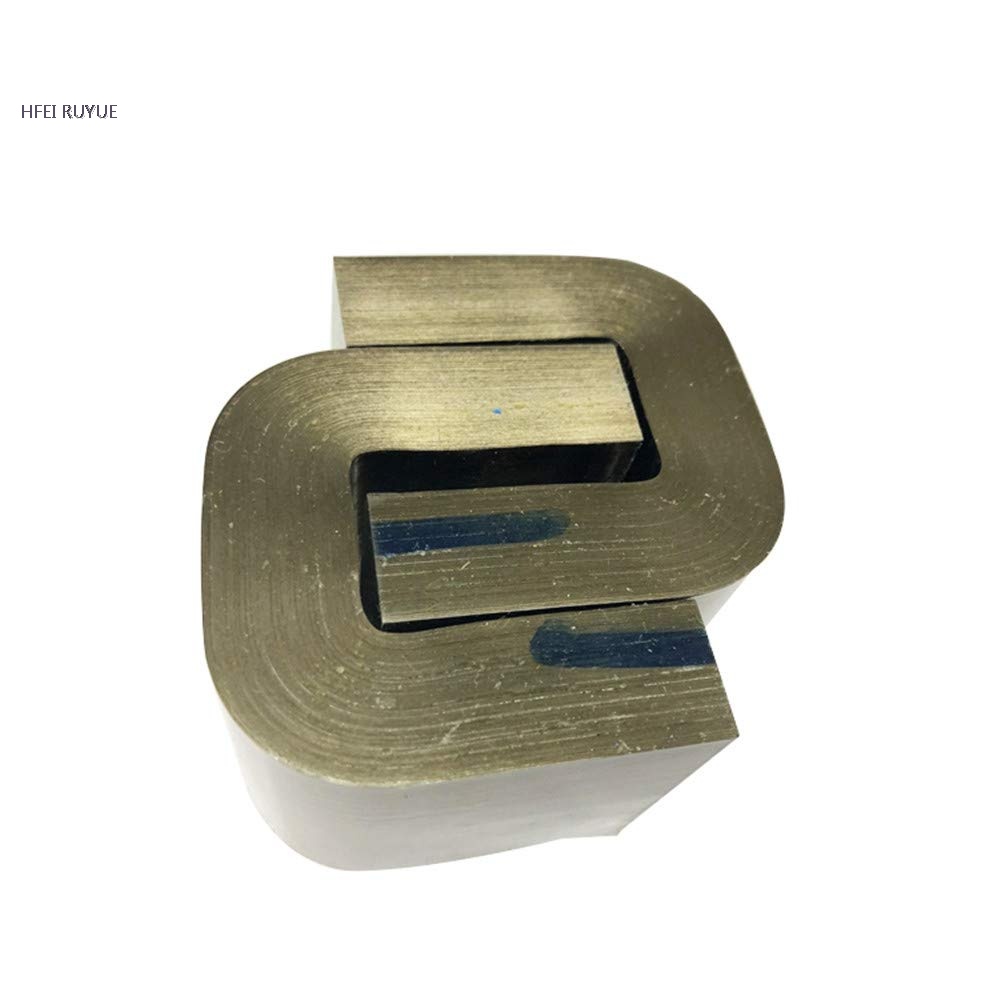

Amorphous Cut core
C-cores can be manufactured outside the physical dimensions of the standard ranges for special applications.
Product performance
High saturate induction—Reducing core volume
• Rectangular form_Easy to mount coils
• With air gap—Excellent anti-bias current ability
• Low core loss一Low temperature rise
• Rectangular form_Easy to mount coils
• With air gap—Excellent anti-bias current ability
• Low core loss一Low temperature rise
• Excellent stability~Keep stable working from -55℃to 130℃
Application fields
• Amorphous reactor core for PV inverter
• Output filter or inductor in high frequency large power supplies
• Mid and high frequency switch power transformer
• Major transformers in UPS power supply
##Customer designs are welcome.##
