Hefei Ruyue Electric Technology Co., Ltd

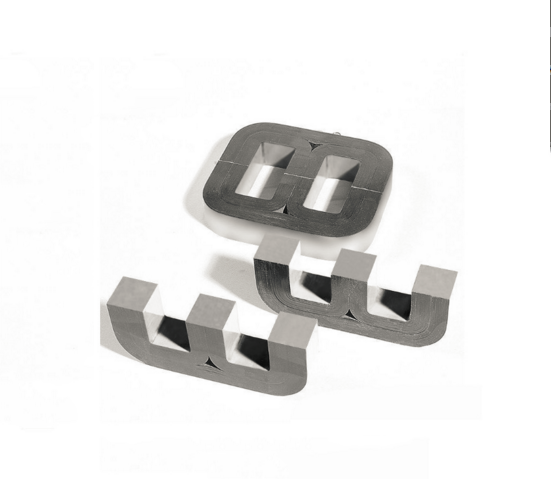

Amorphous E core three phase amorphous core
China amorphous Cut E core, amorphous woud core
Application:
Reactor cores for PV inverter
Filter reactor of high-frequency super switching power supply
Mid-high frequency switching power supply
Major transformer of UPS Power supply
High Saturate induction -- Reducing Core Volume
Rectangular Structure -- Easy for coil assembling
Core Cutting -- Good for anti-DC-bias-saturation
Low core loss -- anti-temperature-rising (1/5 ~ 1/10 compared to silicon steel)
Good stability -- Stable working from -50℃ to 130℃
Customized dimension is welcome.
Part No | a | b | c | d |
| e |
| f |
| Mass | |
|---|---|---|---|---|---|---|---|---|---|---|---|
CC(E)-47 | 15 | 0.8 | 25 | 47 | 30 | 0.5 | 95 | 1 | 77 | 2 | 891 |
CC(E)-200 | 22 | 0.8 | 25 | 70 | 30 | 0.5 | 116 | 2 | 114 | 3 | 1743 |
CC(E)-273 | 24 | 0.8 | 38 | 85 | 40 | 1 | 148 | 2 | 133 | 3 | 3139 |
CC(E)-300 | 25 | 0.8 | 25 | 78 | 40 | 1 | 125 | 2 | 128 | 3 | 2889 |
CC(E)-331 | 22 | 0.8 | 40 | 87 | 50 | 1 | 146 | 2 | 131 | 3 | 3643 |
CC(E)-900 | 25 | 0.8 | 40 | 118 | 50 | 1 | 155 | 2 | 167.5 | 3 | 5016 |
CC(E)-950 | 32 | 1 | 40 | 64 | 50 | 1 | 176 | 2 | 128 | 3 | 5132 |
CC(E)-1200 | 30 | 1 | 55 | 120 | 35 | 0.5 | 200 | 2 | 180 | 3 | 4832 |
CC(E)-1406 | 35 | 1 | 45 | 120 | 85 | 1.5 | 195 | 2 | 190 | 3 | 13435 |
CC(E)-3000 | 50 | 1 | 64 | 100 | 80 | 1.5 | 278 | 2 | 200 | 3 | 20311 |
