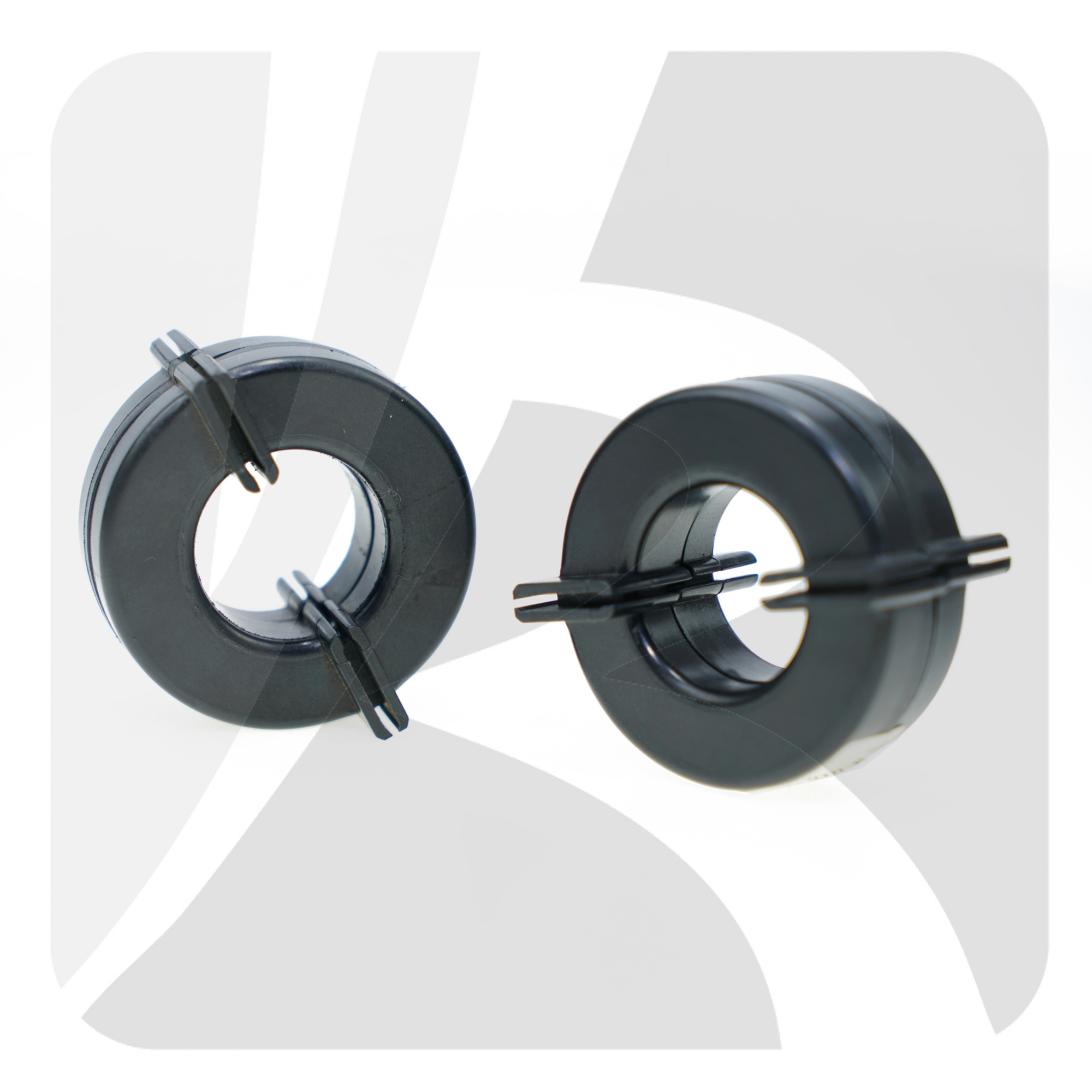

Nano-crystalline EMC Common-Mode choke cores VAC X616
Product name : Nano-crystalline EMC Common-Mode choke cores VAC X616
Products Category: > Nanocrystalline alloy cores
The EMC standard of frequency range of 150KHZ-30MHZ onrestraining the conducted CM EMI are becoming more serious on the application, CM inductance & filter cpacitor were used to restrain the CM EMI, we developed afvanced higher property Nano-crystalline common mode choke cores as solution for EMC common mode choke cores requirement, and were applied to the EMC of switch power modules, UPS power suppym communnicarion power supply, inverterm transducer, home applicance.
Application Fields
Application Fields
#Protection for accurate electronic equirement
#Common mode jam filtering for EMI power
#Common filtering in single phase or three phase circuit
#Common mode jam filtering for EMI power
#Common filtering in single phase or three phase circuit
Performance Characteristics
#High initial permeability:5-20 times higher than ferrite core
#High saturate induction density: 2-3 times higher than ferrite core, not easy b e saturated in high current fields
#Excellent temperature stability-with the serving temperature from -55 to -130℃ for a long time, the Curie temperature is higher, The properature are not changeable easily eben in unstable workibg temperature.
#Good frequency flexibility-better controllingf to the noise in different frequencies
#High saturate induction density: 2-3 times higher than ferrite core, not easy b e saturated in high current fields
#Excellent temperature stability-with the serving temperature from -55 to -130℃ for a long time, the Curie temperature is higher, The properature are not changeable easily eben in unstable workibg temperature.
#Good frequency flexibility-better controllingf to the noise in different frequencies
#High Anti-inbalanced-current: Specially made Nano-crystalline EMC common Mode Chokes can guarantee 104 permeability when resist 80A/m unbalanced current bias field
