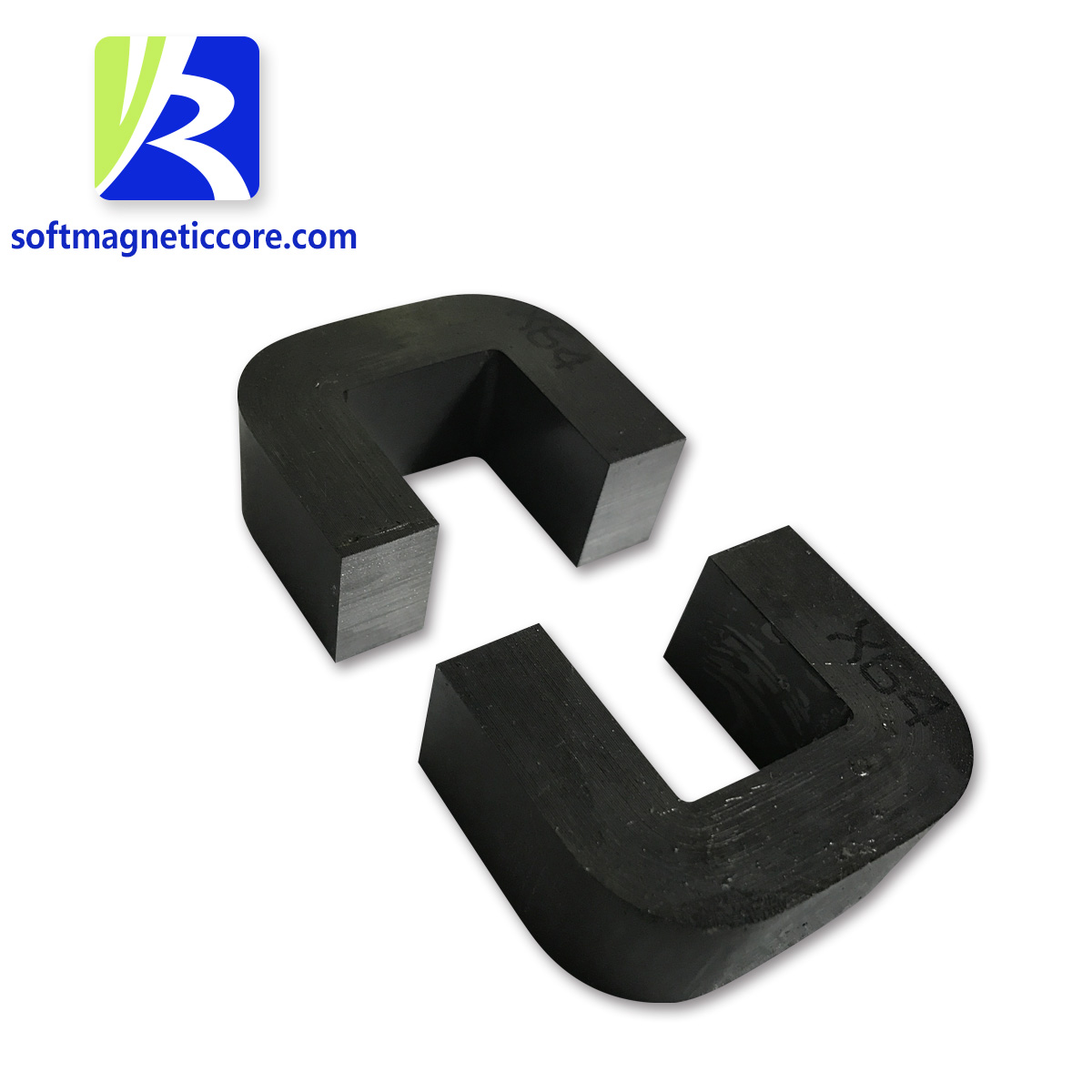

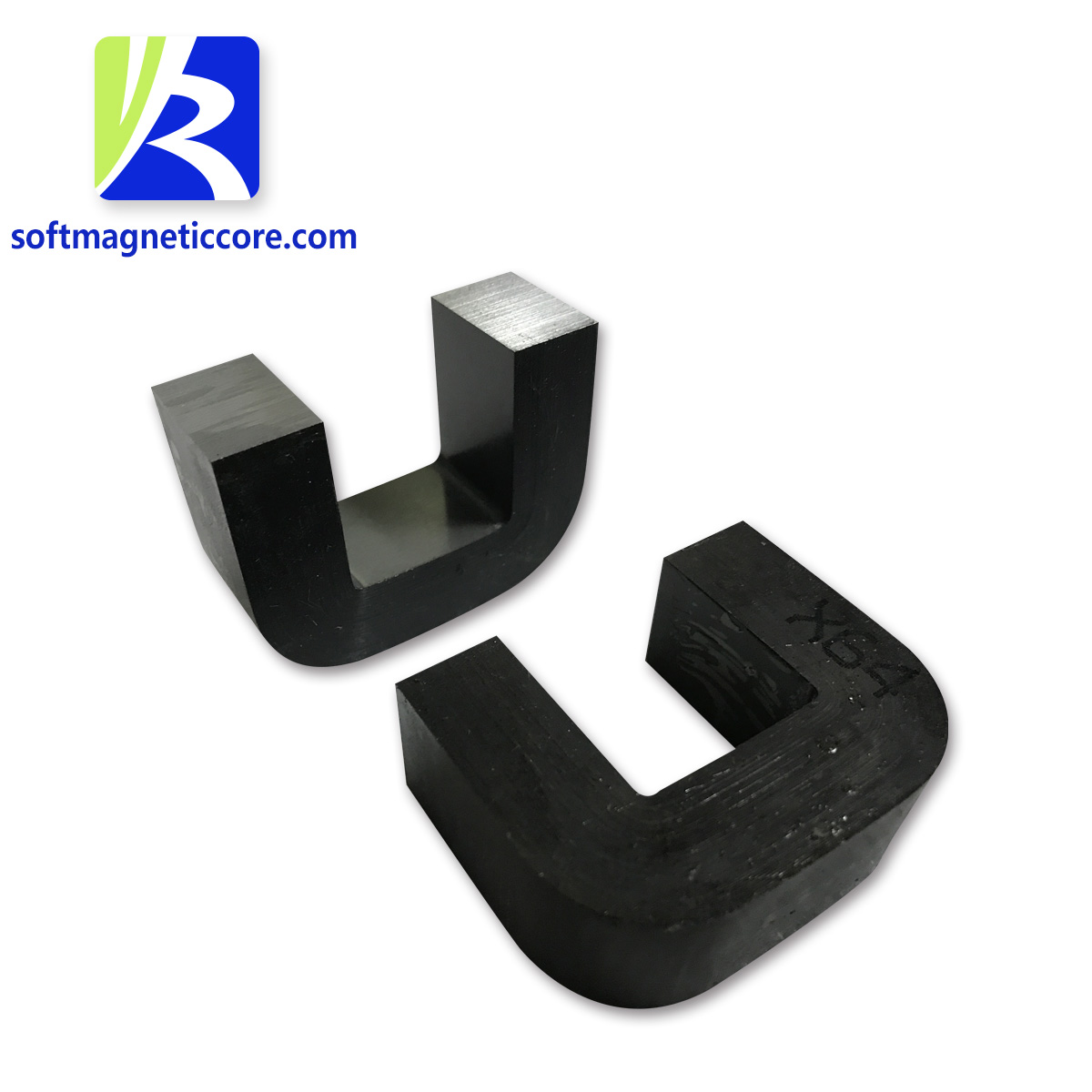

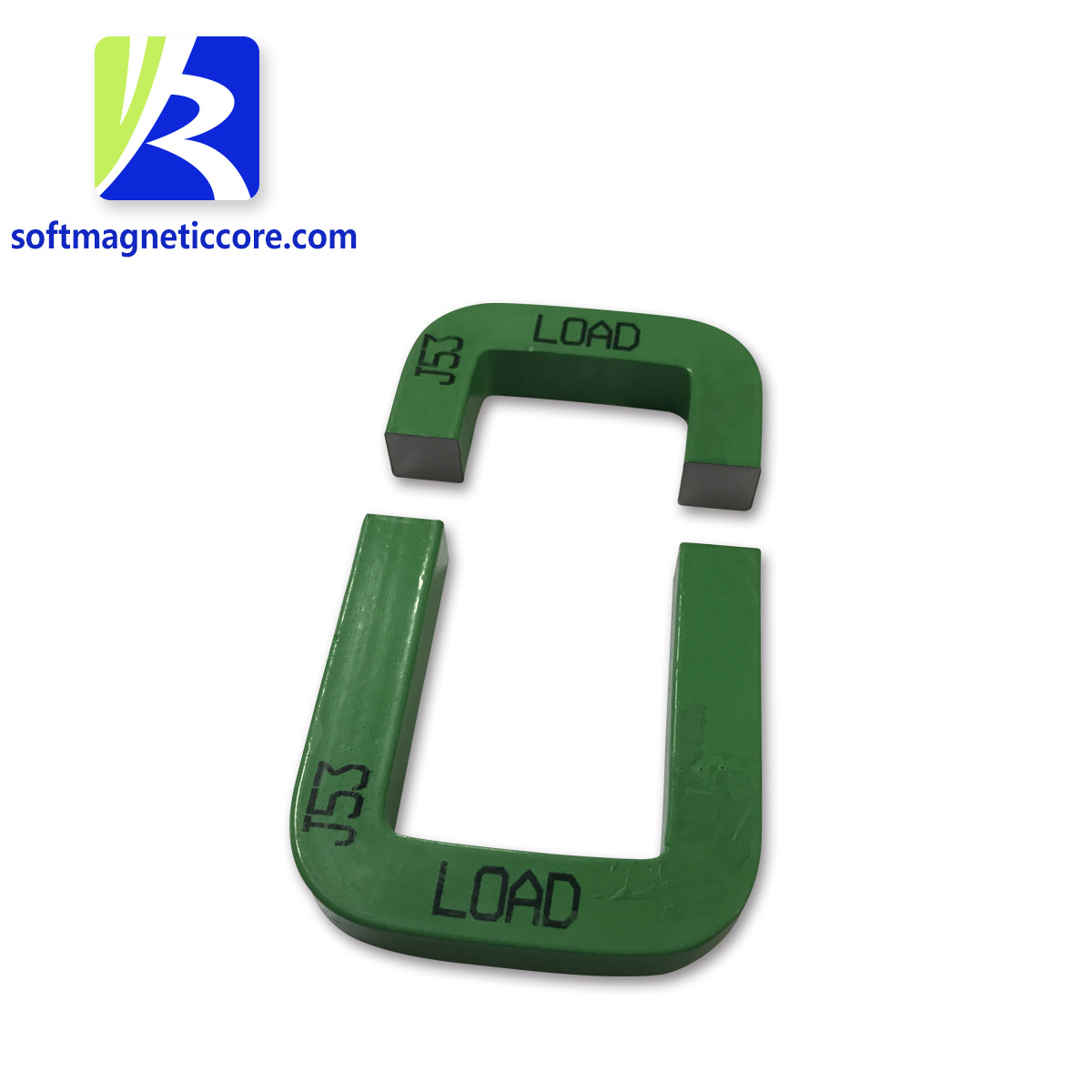

soft magnetic core silicon steel Rectangular core transformer cores

Material:

High quality CRGO steels with low iron-loss and high permeability in thickness of 0.05mm, 0.08mm, 0.1mm, 0.23mm, 0.27mm, 0.3mm and 0.35mm.

Characteristic:

The two halves put together and come into a closed flux path as an open structure. So bobbin and core can be produced separately, afterward put the core in bobbin, and then the production time can be reduced.

All cores, unless otherwise state, are individually tested to the standard guarantee specifications. Special test conditions, when required, can be applied and guaranteed to suit customer's individual requirements.

Application:

Various specifications C core are widely used in 50Hz and 400Hz transformers, current transformers, reactors, chokes and other magnetic components of electronic equipment.

size:deponed on customer's requirement
