Nanocrystalline Measuring Transformer Core
Product name : Nanocrystalline Measuring Transformer Core
Products Category: > Nanocrystalline alloy cores

DESCRIPTION:

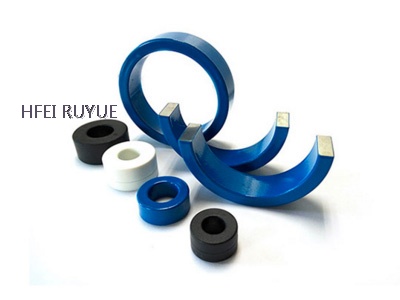

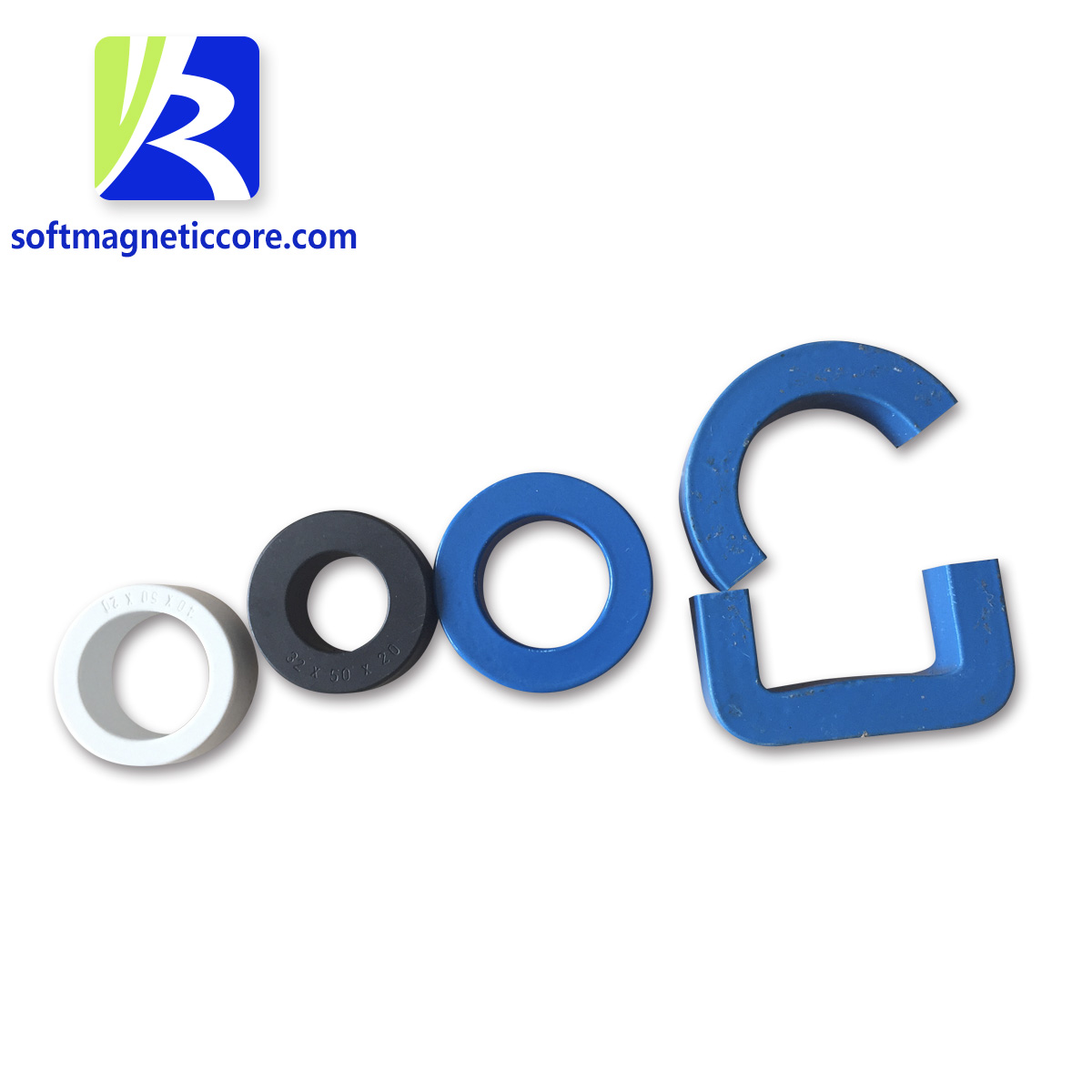

Split Nanocrystalline Core is ideal material for replacing
the split nanocrystalline core and split permalloy core.
Our Nano cutting surface Technology for split current transformer core
isNo.1inChinaTheSplitCurrentTransformerCore
Initial Permeability ≥6,000 (Nano Cutting)
We are the only one manufacture can reach the level in China
The permeability of split nanocrystalline core is 10 times higher
than split silicon steel core.
The core loss of split nanocrystalline core is 1/3 less than
split silicon steel core.
CHAEACTERISTICS:
The permeability can reach to ≥ 6,000
Core Loss(16KHz/37mT) is 1/2 less than Amorphous Core
Excellent degree of linearity, 20% better than split silicon steel core.
The precision will be reached to one level upgrade
APPLICATION
Split Core Current Transformer
Split Core Current Sensor
Instrument Transformer
Voltage Transformer
Performance
Saturation Induction Bs(T) 1.25
Curie Temperature Tc(ºC) 570
Curie Temperature Tx(ºC) 500
Hardness Hv 800
Initial Permeability(μ0) >6000
Saturation Magnetostriction 2.0x10-6
Density(g/cm3) 7.2
Resistance Ratio(μΩ.cm) 130
Thickness(μm) 28~35
Stacking factor ≥0.75
