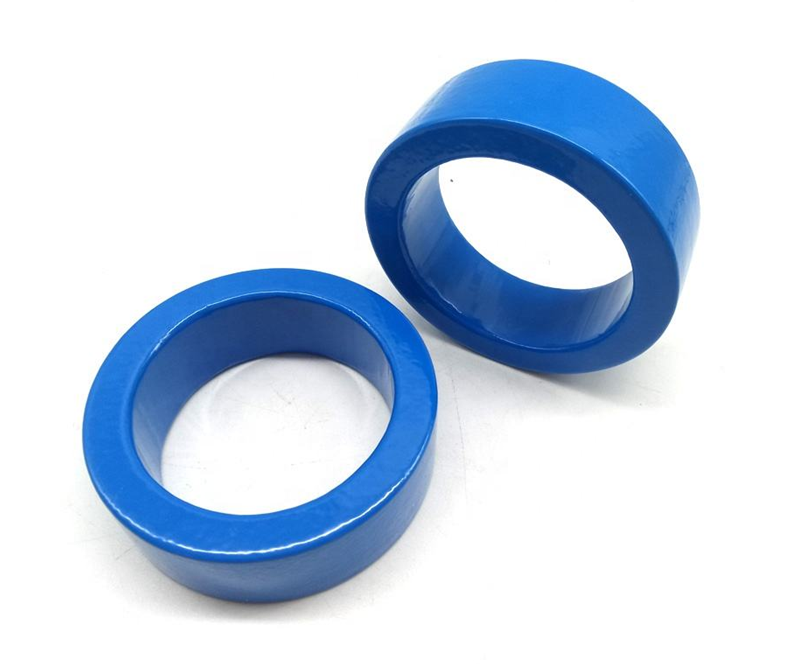

Nanocrystalline core for inductor

Nanocrystalline Core Industry Applications

Applications for nanocrystalline cores closely resemble those for amorphous cores. The choice between an amorphous and nanocrystalline material for a given application depends on the specific environmental and industrial constraints. The high permeability, low power loss, and high saturation of nanocrystalline cores improve performance across:

SMPS and UPS

Inverters

EMC filters

Frequency converters

AC and DC transformers

Inductors

Common mode and differential mode chokes

Magnetic amplifiers

Advantages of Nanocrystalline Cores

Nanocrystalline materials were historically limited by their high cost and narrow widths. However, modern nanocrystalline materials like Finemet® FT-3W have eliminated these challenges, making nanocrystalline cores more competitive in both price and versatility. Finemet® and similar nanocrystalline materials bring the following benefits:

High magnetic induction. Like amorphous materials, nanocrystalline alloys have higher permeability than any other magnetic material. Their impressive induction not only improves performance but also allows for reduced component size.

High saturation. Nanocrystalline cores have the high saturation magnetic induction strength to handle high-current applications with strong interference.

Core shapes     Troidal core / C Core / Customizable

Core Finish       Coating / Casing / Customizing
